STEADYFLOW GATES

SteadyFlow irrigation and stormwater gate specifications are listed below, with gates available from a max CFS (cubic feet per second) of 1-20, with depth ranges and actual built dimensions listed.

1 CFS

1CFS 5ft_EV.png
A001-5

MAX FLOW (CFS): 1

DEPTH (FT): 0.73 - 5

Frame Height (in): 26

Frame Width (in): 24

Length (in): 84

1CFS 10ft_Camera_SOLIDWORKS Viewport.png
A001-10

MAX FLOW (CFS): 1

DEPTH RANGE (ft): 0.73 - 10

Frame Height (in): 26

Frame Width (in): 24

Length (in): 144

IRRIGATION Gates
Includes a horizontal gate, allowing full control over the flow rate

Untitled Project_Camera_Dial View.png
A005-5

MAX FLOW (CFS): 5

DEPTH (FT): 1.34 - 5

Frame Height (in): 40.8

Frame Width (in): 36.5

Length (in): 84

Untitled Project_Camera_Right.png
A005-10

MAX FLOW (CFS): 5

DEPTH (FT): 1.34 - 10

Frame Height (in): 40.8

Frame Width (in): 36.5

Length (in): 144

5 CFS

10 CFS

A010-5

MAX FLOW (CFS): 10

DEPTH (FT): 1.63 - 5

Frame Height (in): 47.5

Frame Width (in): 45

Length (in): 84

10cfs 10f_Camera_Back.png
A010-10

MAX FLOW (CFS): 10

DEPTH RANGE (ft): 1.63 - 10

Frame Height (in): 47.5

Frame Width (in): 45

Length (in): 144

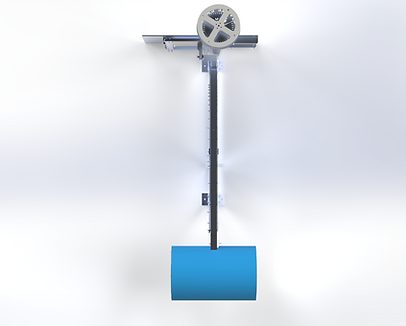

20CFS 5ft Top.png
A020-5

MAX FLOW (CFS): 20

DEPTH (FT): 2.13 - 5

Frame Height (in): 57.5

Frame Width (in): 39.5

Length (in): 84

20CFS 10ft Renders (5).jpg
A020-10

MAX FLOW (CFS): 20

DEPTH (FT): 2.13 - 10

Frame Height (in): 57.5

Frame Width (in): 39.5

Length (in): 144

20 CFS

1 CFS

Storm Water 1CFS 5ft Product Page_Camera_ISO.png
A001-5

MAX FLOW (CFS): 1

DEPTH (FT): 0.73 - 5

Frame Height (in): 26

Frame Width (in): 24

Length (in): 84

1CFS 10ft_Camera_SOLIDWORKS Viewport.png
A001-10

MAX FLOW (CFS): 1

DEPTH RANGE (ft): 0.73 - 10

Frame Height (in): 26

Frame Width (in): 24

Length (in): 144

STORMWATER Gates

Storm Water 5CFS 5ft Product Page_Camera_SOLIDWORKS Viewport.png
A005-5

MAX FLOW (CFS): 5

DEPTH (FT): 1.34 - 5

Frame Height (in): 40.8

Frame Width (in): 36.5

Length (in): 84

Storm Water 5CFS 10ft Product Page_Camera_ISO.png
A005-10

MAX FLOW (CFS): 5

DEPTH RANGE (ft): 1.34-10

Frame Height (in): 40.8

Frame Width (in): 36.5

Length (in): 144

5 CFS

10 CFS

1CFS 5ft_EV.png
A010-5

MAX FLOW (CFS): 10

DEPTH (FT): 1.63 - 5

Frame Height (in): 47.5

Frame Width (in): 45

Length (in): 84

1CFS 10ft_Camera_SOLIDWORKS Viewport.png
A010-10

MAX FLOW (CFS): 10

DEPTH RANGE (ft): 1.63 - 10

Frame Height (in): 47.5

Frame Width (in): 45

Length (in): 144

Storm Water 1CFS 5ft Product Page_Camera_Funsies.png
A020-5

MAX FLOW (CFS): 20

DEPTH (FT): 2.13 - 5

Frame Height (in): 57.5

Frame Width (in): 58

Length (in): 84

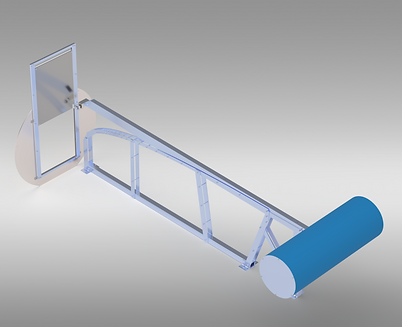

Strom Water 20CFS 10ft Product Page_Camera_EV.png
A020-10

MAX FLOW (CFS): 20

DEPTH RANGE (ft): 2.13 - 10

Frame Height (in): 57.5

Frame Width (in): 58

Length (in): 144

20 CFS

Gate Options

Let us know your setup and we can help direct you to the best model to fit your needs!
